A better solution than the Fluke 5615
Get SPRT-Like Perfomance for less than the cost of a Fluke PRT
Isotech's Model 935 |
Fluke's Model 5615 |
|
| Temperature range |
–200 °C to 670 °C | –200 °C to 420 °C |
| Nominal resistance | 100Ω ± 0.05 Ω | 100 Ω ± 0.10 Ω (at 0°C) |
| Drift | ±0.005°C/year at 0°C | ±0.007 °C/100 hours at 0.010 °C |
| Short Term Repeatability | ±0.005°C | ±0.009°C |
| Sensor Length | 6mm - 25mm | 28mm |
| Sheath Diameter | 3mm - 6mm | 4.76mm - 6.35mm |
| Sheath Length | 165mm - 480mm | 152mm - 305mm |
|
Cost |
Starts at $526 |
Starts at $1,220.00 |
Have a Fluke meter?
Not a problem.

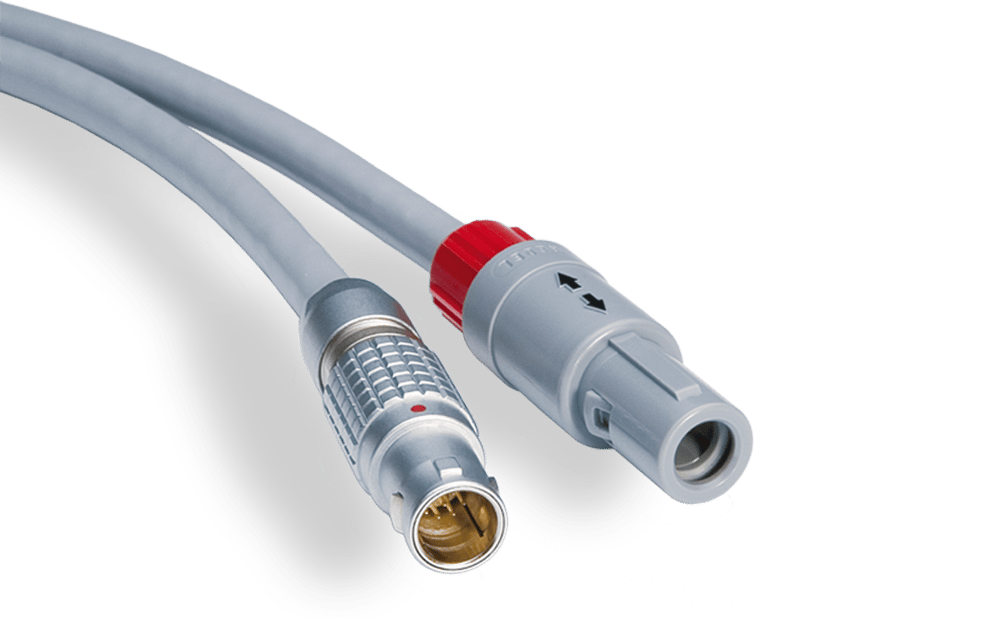

We can put the matching connector (including smart connectors) on the 935 and provide a better PRT, faster, all for less than the cost of a 5615.
ISO-17025 Accredited Calibration Uncertainty
| Temperature | Isotech's Model 935 | Fluke's Model 5615 |
| –196 °C | 0.007 °C | 0.024 °C |
| –38 °C | 0.006 °C | 0.011 °C |
| 0 °C | 0.005 °C | 0.010 °C |
| 200 °C | 0.006 °C | 0.018 °C |
| 420 °C | 0.006 °C | 0.029 °C |
| 660 °C | 0.012 °C | ¯\_(ツ)_/¯ |
Best Measurement Uncertainties (k=2, 95% confidence)
Send me the datasheet:
Can't wait?
Buy now.
Skip the nonsense and Go straight to our website to buy a 935 unit.
Want more than just a probe?
Isotech is a world leader in temperature metrology.

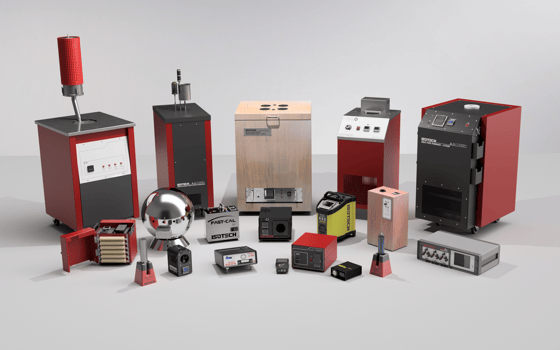

By selling Thermometry Bridges, Standard Platinum Resistance Thermometers, fixed-point cells, portable dry block calibrators, liquid baths, furnaces, and infrared calibrators it's no surprise that 80% of the world relies upon Isotech for their National Standards. It works well for them and we are excited to make it work well for you.
Calibration Services

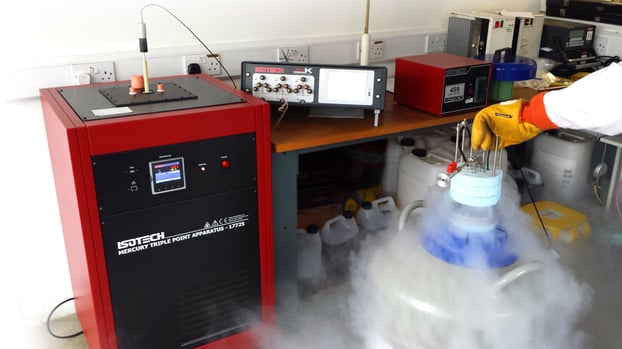

We also offer ISO/IEC 17025:2017 Accredited Calibration and NIST Traceable Calibration services from -196 to 1200°C (2200°F) for a variety of instruments such as SPRTs, RTDs, Thermistors, Thermocouples, Readouts, Liquid-in-Glass Thermometers, Dry Block Calibrators, and Electronic TC & RTD Simulators. We can calibrate hardware from almost any manufacturer.
